KONSTANZ TRAINING KITS

With high standard of manufacturing and quality control, our training kits and demonstration stations are widely regarded as among the best. G.I. Industry client base does not only stop locally within Thailand, but our training products have been shipped off overseas to many countries' educational and industrial sectors such as Australia, Malaysia, Israel and a few countries in Africa.

AUTOMOTIVE TRAINING KITS: TOYOTA PROJECT TRAINING KITS

Toyota Camry Hybrid and Prius Demonstration stations/cut away to be displayed at various Motor shows including Bangkok Motor Show and Motor Expo. The stations help audience understand more in detail of how a hybrid works. With many interactive visual and audio features, a whole hybrid concept is illustrated by just visiting this station.

TOYOTA CAMRY HYBRID DEMONSTRATION STATION

TOYOTA PRIUS HYBRID DEMONSTRATION STATION

TOYOTA HILUX VIGO DEMONSTRATION CUT AWAY

Automation & Robotics Technology (Some examples of our automotive training kits)

0559-911 APS Robotic Compact System

The Robotic training system is designed for learning the automatic production line. Technology of Robotic, Technology of Sensor, Technology of IO-link, Technology of Controller, Technology of Product Management, Technology of IIoT. The training system consist of 6 Stations : Product Feeding Station, Product Checking Station, Product Processing Station, Product Sorting Station, Conveyor Station and Robotic Station.

0559-016 Industrial Robot Training System

The training system is designed for Learning, Practicing and Programming The Industrial robot. Learning the Technology of Sensor, Technology of IO-link, Technology of Controller, Technology of Robotic, etc. Programming advanced, HMI programming, IO-link programming, Robotic programming, etc.

0508-012 Sorting station system

Practicing to write the “LOGO! Soft Comfort” program to apply the separation control about metal and non-metal workpieces.

PLC & HMI Training System (Some examples of our PLC & HMI training kits)

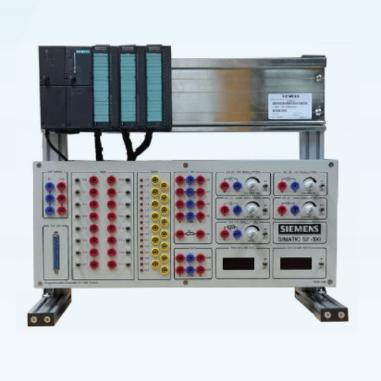

0538-008 PLC with the HMI network system

Practicing to write the “TIA Portal”program to apply with simulation sets such as digital set (0...10VDC and 0...20mA)

0538-009 PLC with the HMI network system

The training system is designed to practicing to write the “TIA Portal”program to apply in the network operation (Profibus and Profinet) with a HMI monitor.

0538-005 Servo motor control system (Ball screw type)

The training system is designed to practicing to write the “TIA Portal” program to apply the network operation with the HMI monitor (KTP700) in controlling the servo drive and motor.

0111-590 Arduino control and programmable training system

The panel is designed to practicing for programming the microcontroller ARDUINO UNO.

Industrial Sensor Training System (Some examples of our Industrial Sensor training kits)

0101-910 Industrial Sensor Training System

The training system is designed for learning about the sensor applications such as Beam sensor, Proximity sensor, Strain gauge, Pressure sensor, Temperature sensor and controller. All connecting points are connected via safety sockets operation.

0101-923 Control Technology for Industrial Mobile Machines

The training system is designed for practicing to write the “CODESYS” program to apply in the network operation (CAN interface), etc.

Electronics & Communications LAB (Some examples of our electrical training kits)

0301-011 Electrical Engineering (Plug-in Compact System)

The training system is designed for practice to connect circuit, learning, and analyzed the basic electronic circuit, basic electrical circuit, and advance electronic circuit.

0105-048 Process Control PID Training System

The training system is designed for learning the process control. Can use the software for monitor the process control system. The display 4 rows. Consist of the speed control system and the temperature control system

0204-012 Basic Electrical circuit (Grid panel Type)

Studying to test DC and AC circuit, Ohm’s law, Norton’s theorem, Thevenin’s theorem, Parallel and series circuits, Voltage divider circuit, RLC in AC circuit, Transformer, etc.

Electrical Machines & Power Electronics (Some examples of our electrical training kits)

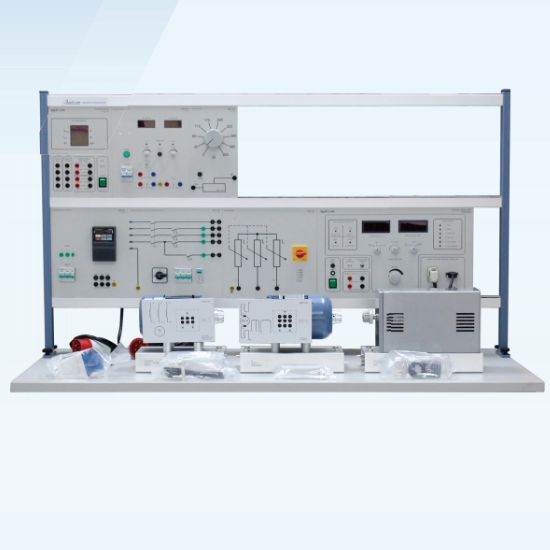

0800-000 Electrical Motor Drives Complete Training System

The training system is designed for practicing to analyzing the AC machine and DC machine. Used actual component in this training system.

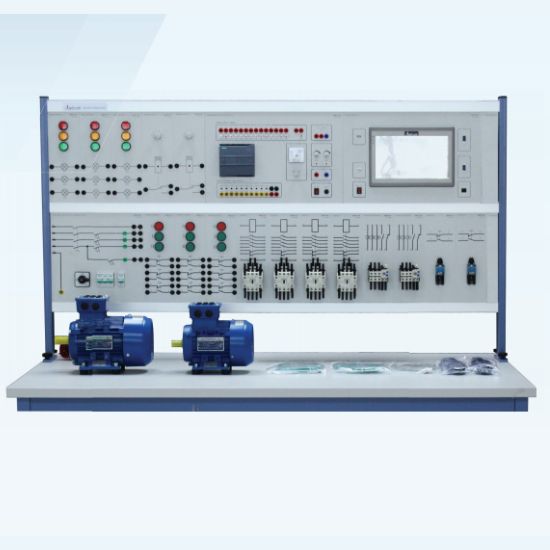

08000 Control circuit education training system

The training system is designed for practicing to connect the motor control circuit. Used actual components in this training systems

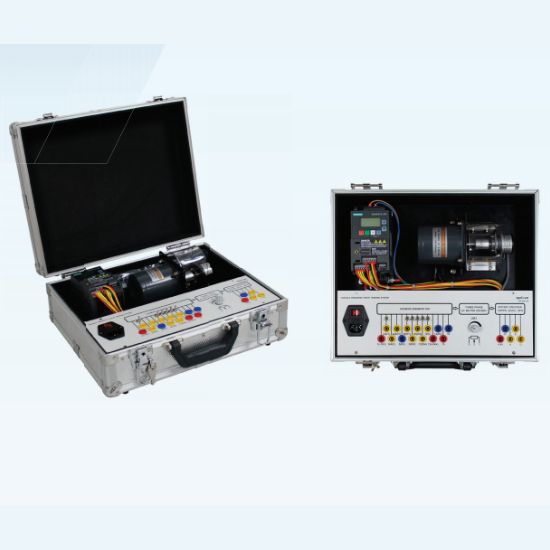

0516-116 Variable Frequency Drive Portable Training System

The training system is designed for studying to use the inverter for controlling AC motor speed. Can be used with a PLC to apply outside to control in the form encoder

Power Electronics & Servo Drive (Some examples of our electrical training kits)

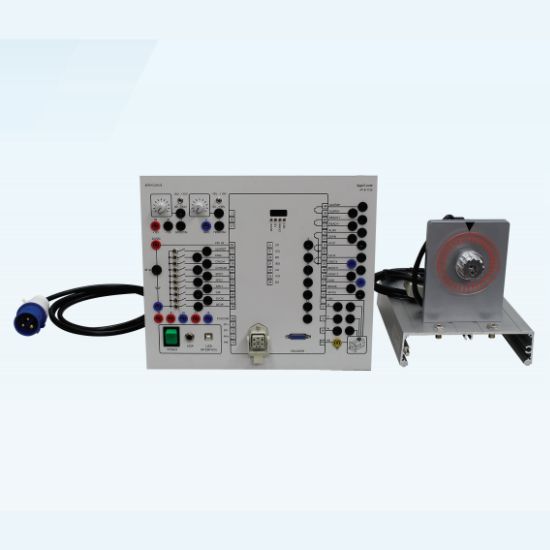

0871-7200 Servo Motor and Control Unit Training System

The training system is designed for learning the basic drive technology, Technology of the servo motor system, Basic configuring the servo drive, Testing the servo system for controlling the disc plate

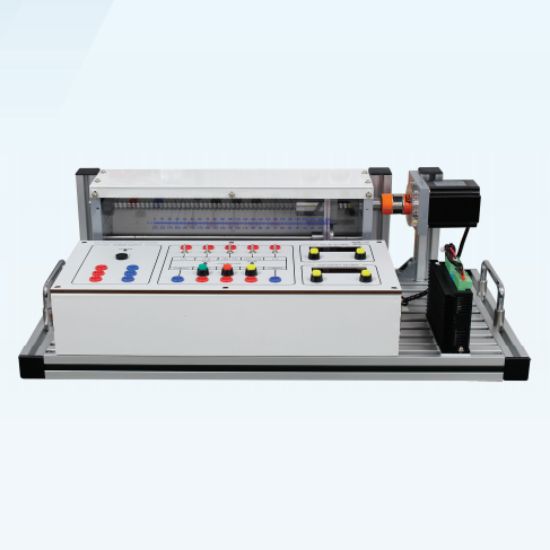

0891-5100 Stepping Motor and Control Unit Training System

The Stepping Motor Drive training system (0891-5100) is designed for learning the basic drive technology, Technology of the stepping motor system, Basic configuring the stepping drive, Testing the stepping motor system for controlling the ballscrew.

Electrical Workshop (Some examples of our electrical training kits)

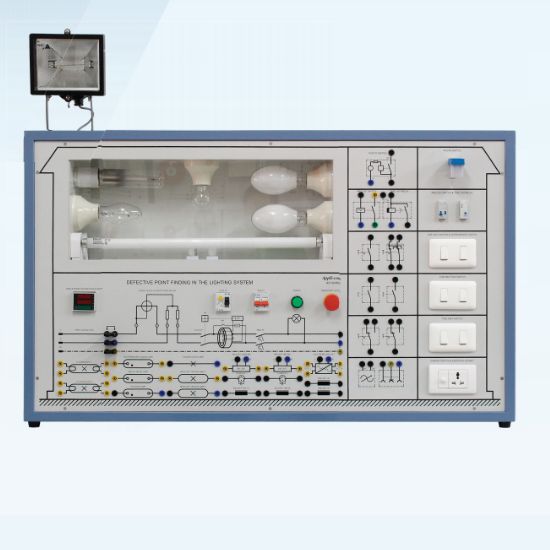

0504-007 Defective Point Finding in The Lighting System
The training system is designed for practicing to learning, checking and Connecting the circuit of lighting system circuit. Use the fault switches to fault simulator of the training system.

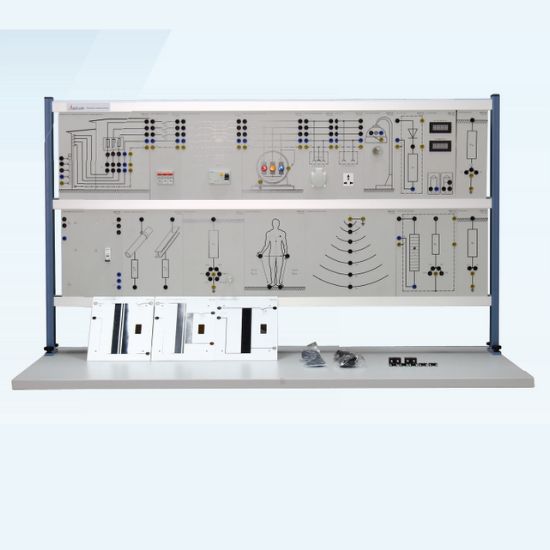

0107-911 Electrical Safety Test System

The training system is designed for learning about the protective measure against electrical shock. It is helpful for learning how to measure safety and properly. The large modular experimental panels, circuit symbols, circuit diagrams, and functional diagrams are clearly visible from far away. Are connected safety socket in operation are used for all connection points.

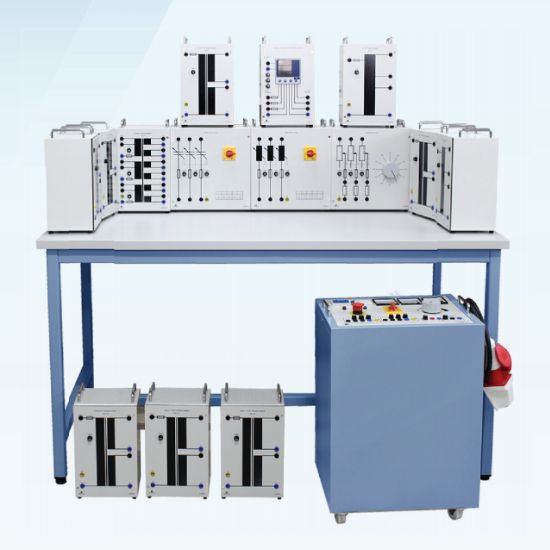

0108-912 Power transformer full set station training system

Studying to test various power transformer characteristics such as finding the impedance value, checking the transformer terminals

Mechatronics & Automation Technology (Some examples of our Mechatronics & Automation training kits)

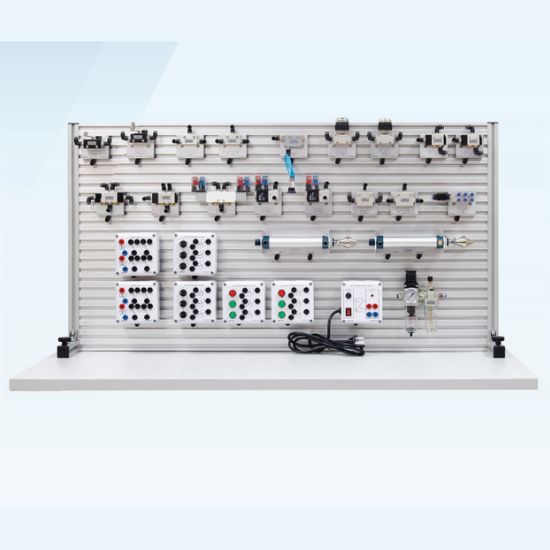

0535-971 Pneumatic and Electro-Pneumatic Basic System

The training system is designed for practicing to connecting the pneumatic system. Learning the pneumatic circuit and electrical circuit of training system. And develop students skills in configuring, connecting and checking the training system.

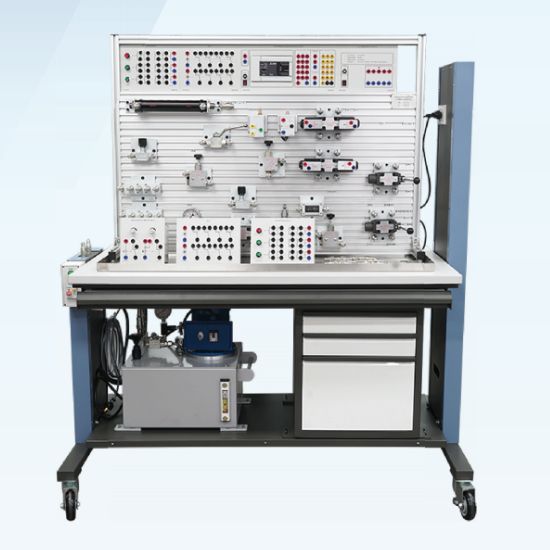

0542-922 Hydraulics and Electro-Hydraulics Basic System

The training system is designed for practicing to connecting the hydraulic system. Learning the hydraulic circuit and electrical circuit of training system. And develop students skills in configuring, connecting and checking the training system. Learning and programming the PLC Siemens CPU1214C.

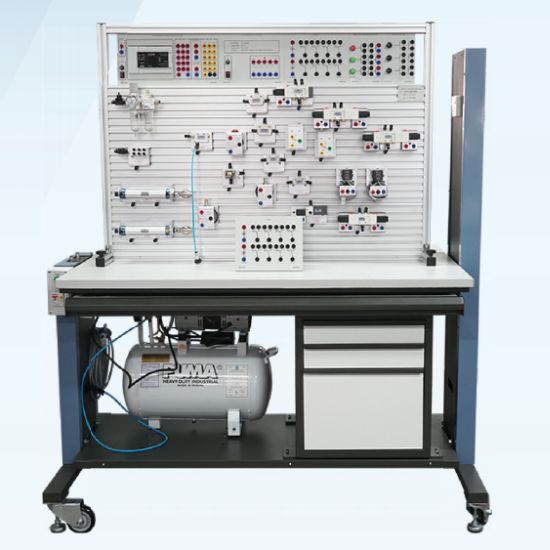

0535-944N Electro-pneumatic system

The training system is designed for practicing to connecting the electro-pneumatic system. Learning the electro-pneumatic circuit of training system. And develop students’ skills in configuring, connecting and checking the training system. Using the Programmable Logic Controller

Peumatic Cutaway (Some examples of our Peumatic Cutaway training kits)

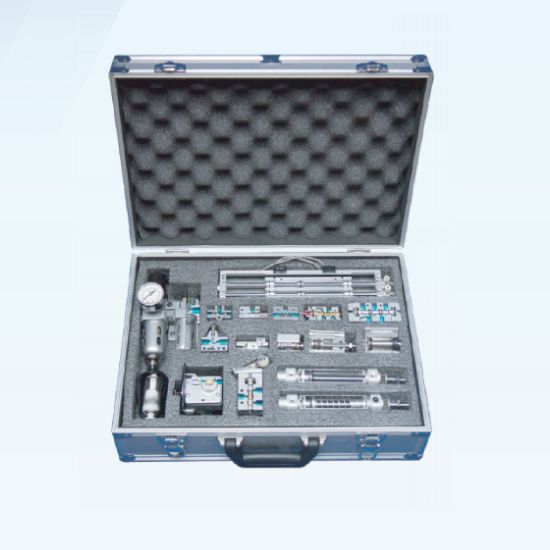

0516-059 Pneumatic cutaway

Studying the internal structual mechanism of various pneumatic cutaways are contained in a case.

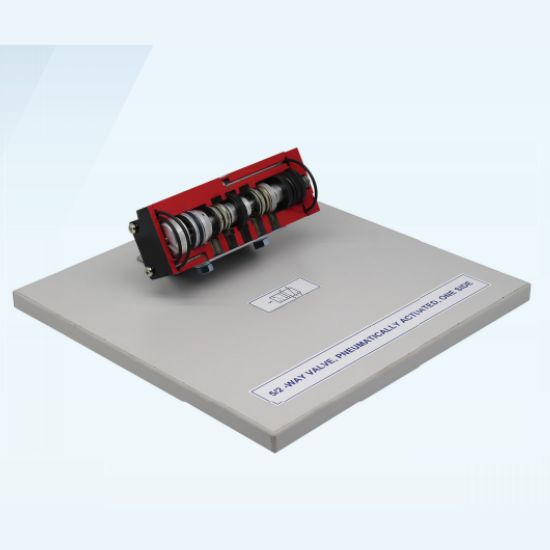

0535-022 Cutaway 5/2-way valve, pneumatically actuated, one side

The training system is designed for learning the 5/2 - Way Valve, Pneumatically Actuated, One side. The 5/2 - Way Valve can see inside clearly.

Mechanical Systems (Some examples of our Mechanical Systems training kits)

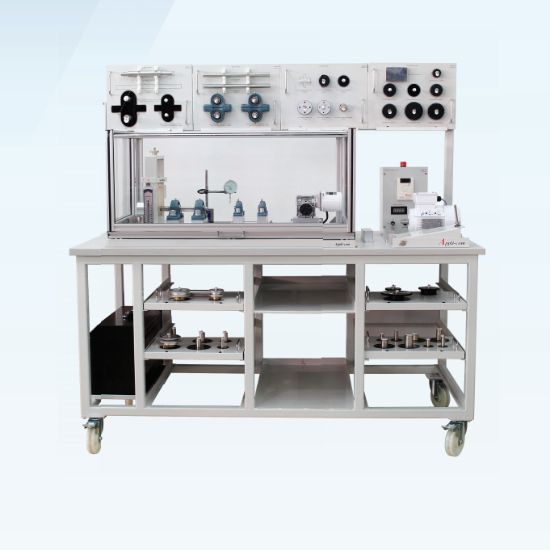

0440-1190 Mechanical Training System

The mechanical training systems introduces the students to the basic components of mechanical drive system, application, installation and maintenance. This system includes a variety of industrial mechanical components that can be set up on a work surface to industrial applications

Process Control (Some examples of our Mechanical Systems training kits)

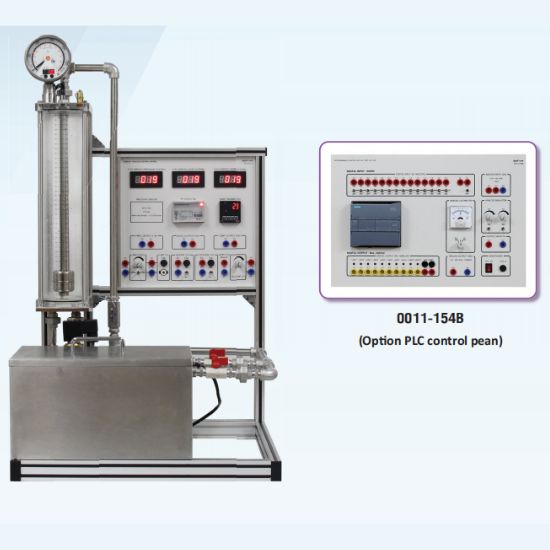

0510-015 Compact Process Control Training System

The training system is designed for studying pressure, level, temperature measuring of the industrial processes and use the PLC (PID Controller Function) for controlling the processes (pressure, level, temperature) open-loop and closed-loop control.

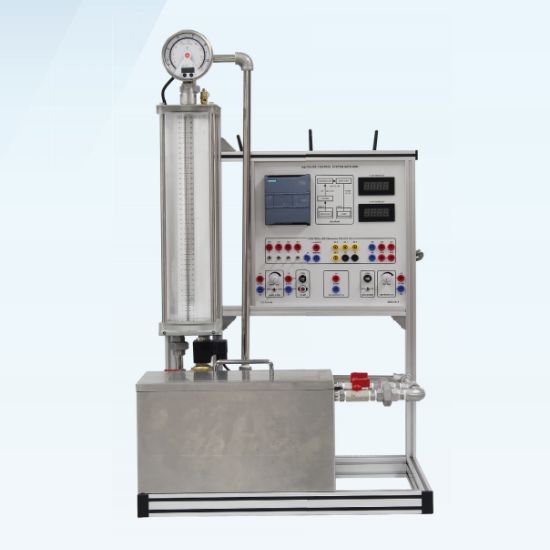

0510-013 Pressure Control Training System with PLC

The training system is designed for pressure measuring of the for controlling the pressure processes. And programming and monitoring with LAN cable or Wifi (Option)

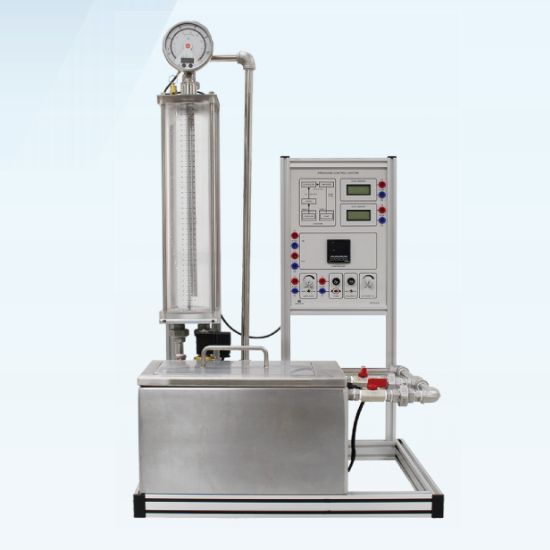

0510-003 Pressure Control Training System with Universal Controller

The training system is designed for pressure measuring of the industrial processes. And use the universal controller for controlling the pressure processes.

Industrial Process Control (Some examples of our Mechanical Systems training kits)

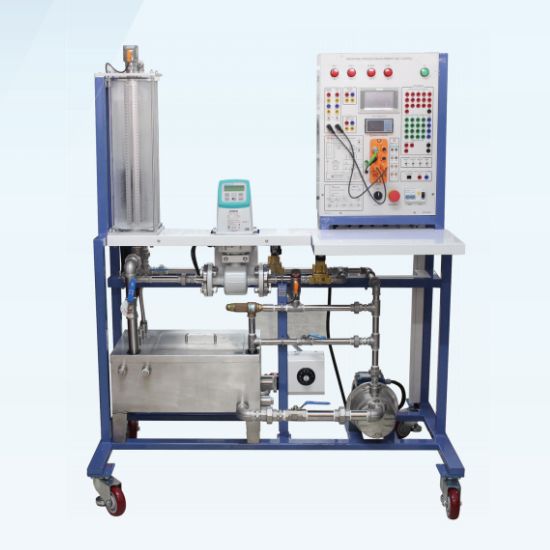

0510-019 Industrial measurement process with IO-LINK

Studying to test the operation of measurement instruments in the industrial operation system and have the four-side feedback control such as temperature side, flow ratio side, pressure side, level measure side.

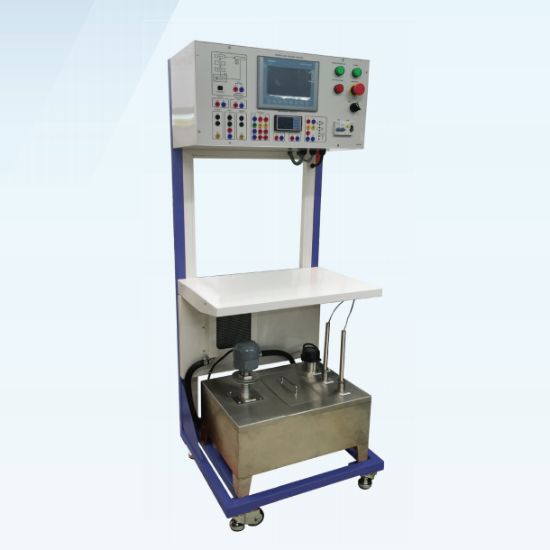

0510-020 Automation Temperature Process Control

Studying to test the temperature process control with PID Controller.

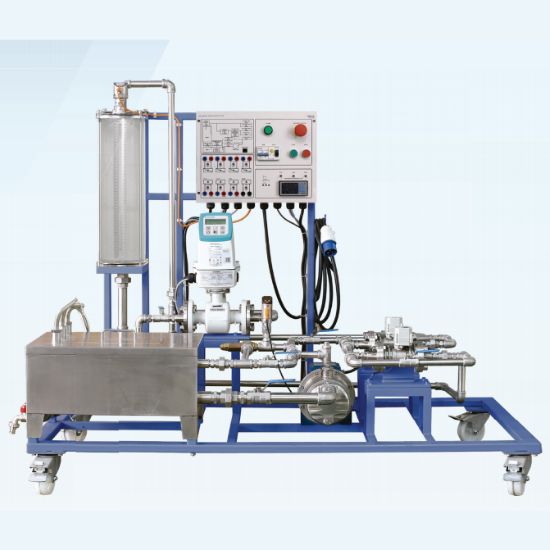

0510-008 APS Complete Process Control System

The training system is designed for flow, pressure, temperature and level measuring of the industrial processes. And use the PLC (PID Controller Function) for controlling the processes (flow, pressure, temperature and level) open-loop and closed-loop feedback control.

Pipe Friction Loss (Some examples of our Pipe Friction Loss training kits)

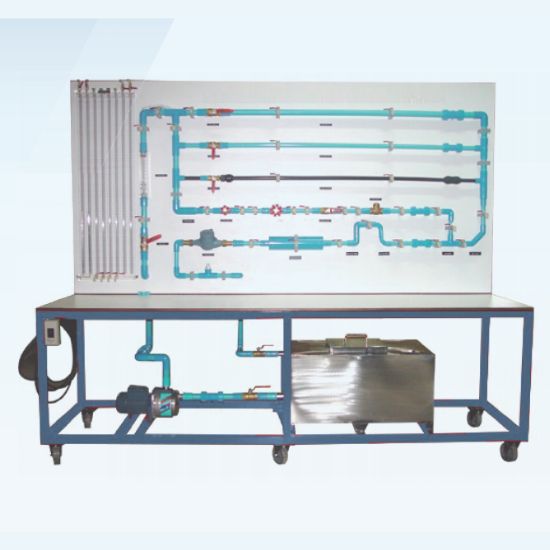

0541-002 Flow friction measurement of water

The training system is designed to experiment and test the flowing friction of water that flow through elbows, joints and reducing joints of PVC pipes with the flowing measurement devices such as Manometer, Rotameter and Water meter.

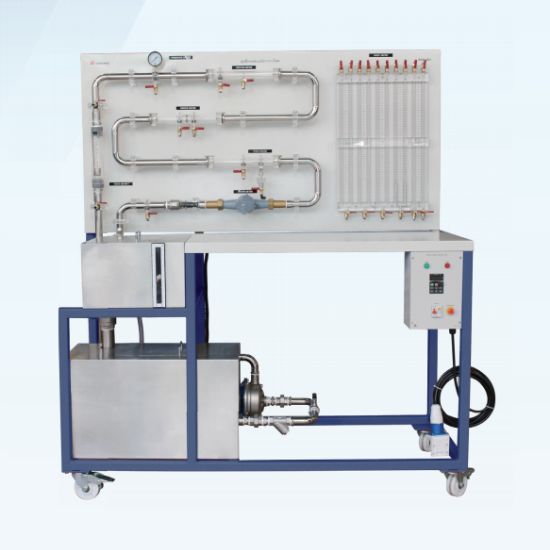

0541-001 Flow rate measurement of water

The training system is designed to experiment and test the flow rate measurement with Venturi tube, Orifice plate and Pitot tube.

Electric Vehicles Technology (Some examples of our Electric Vehicles Technology training kits)

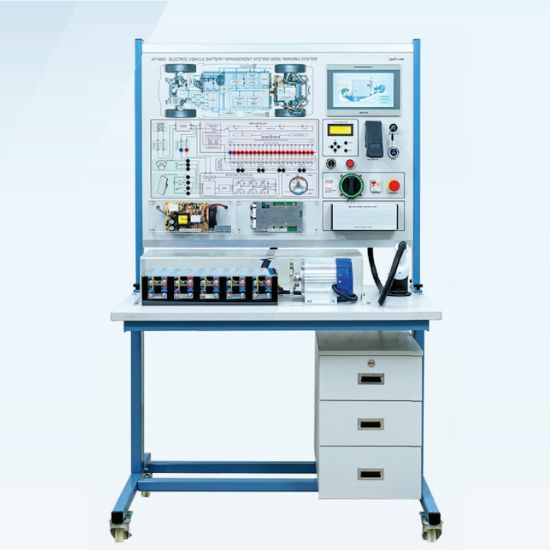

06901 Electric Vehicle Battery Management System (EV-BMS)

The training system is designed for Learning, Testing the Battery Management System of Electric Vehicle. Learning the Monitoring of every cell Voltage, pack current and temperature, Cell balancing (Passive), Active Monitoring and Derating, Thermal Management, etc. Use the controller with LCD display for controlling fault simulator of the training system.

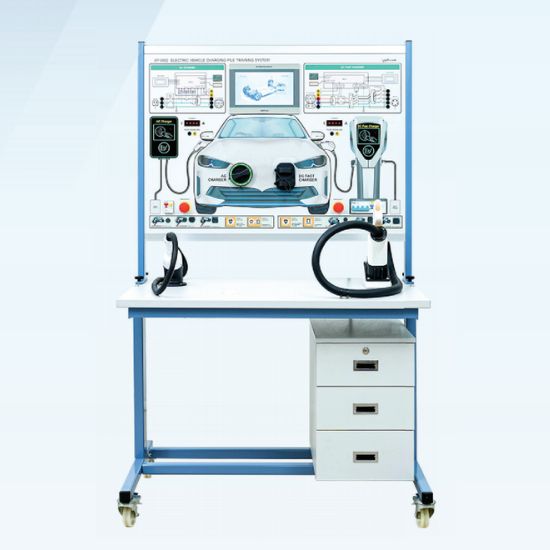

06902 Electric Vehicle Charging Pile Training System

The training system is designed for Learning, Testing the electric vehicle battery charging station and RFID payment

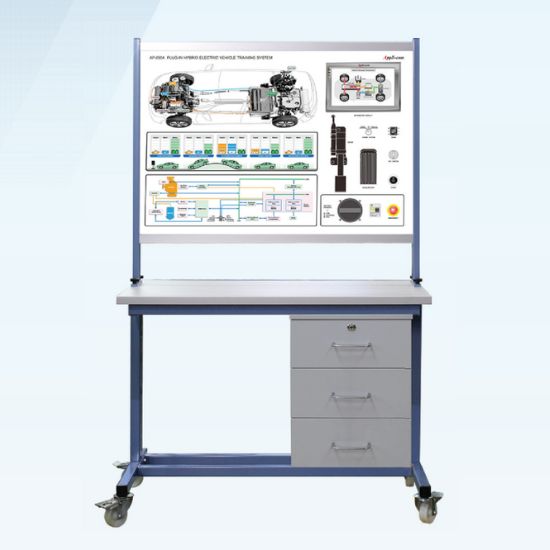

06904 Plug-in Hybrid Electric Vehicle Training System

The training system is designed for practicing to learning the circuit of car lighting system, car signal lamp system, etc. And develop students’skills in measuring and checking the car lighting system, car signaling system. Use the controller with LCD display for controlling fault simulator of the training system.

Automotive Technology Systems (Some examples of our Automotive Technology Systems training kits)

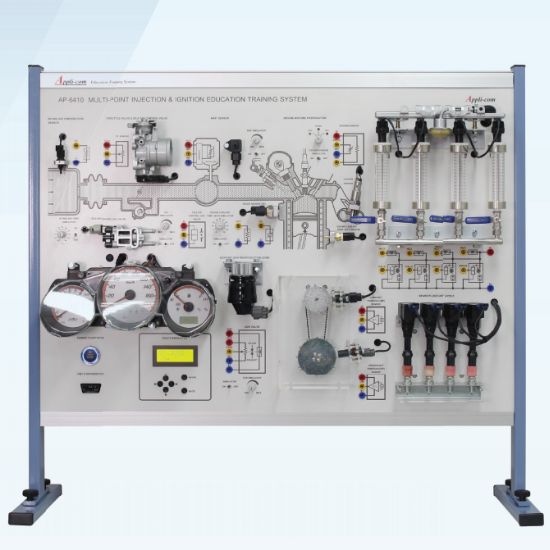

06410 Multipoint injection & ignition education training system

The training system is designed for practicing to learning the circuit of ignition system and multipoint injection system. And develop students’skills in measuring and checking the ignition system and multipoint injection system. It can simulate the speed of engine and simulate the sensor of ignition system and multipoint injection system. Used actual components in this training systems. Use the controller with LCD display for controlling fault simulator of the training system.

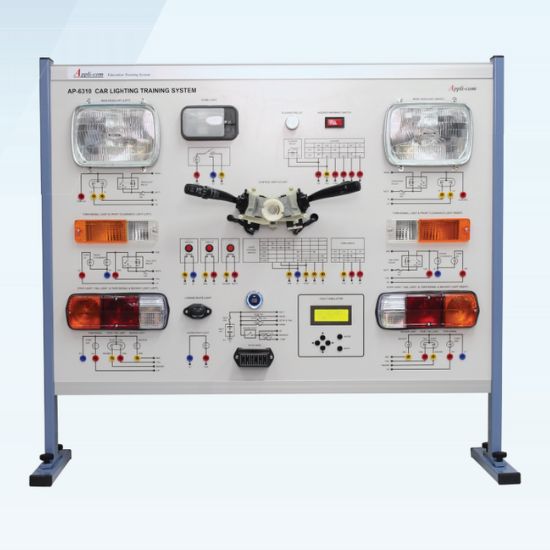

06310 Car lighting training system

The training system is designed for practicing to learning the car lighting system circuit, car signal lamp system circuit, etc. And develop students’skills in measuring and checking the car lighting system. The AP-6310 use actual component of car system. Use the controller with LCD display for controlling fault simulator of the ignition system.

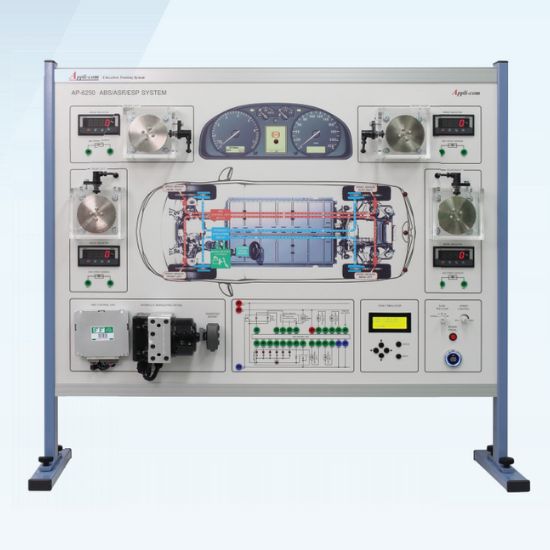

06250 ABS 4-channel training system

The training system is designed for practicing to check the ABS sensor, learning the circuit of anti-lock braking system (ABS), and develop students’ skills in measuring and checking the system. The AP-6250 can simulate the speed of car. Can simulate fault on system by the fault switch. Can check the warning light when fault at the ABS system. Can troubleshooting when the ABS system fault. Install 4 unit of the inverter for drive the ABS sensor. Use actual ABS control module in the system. The ABS system diagram is shown clearly on panel.

Automotive on Stand (Some examples of our Automotive on Stand training kits)

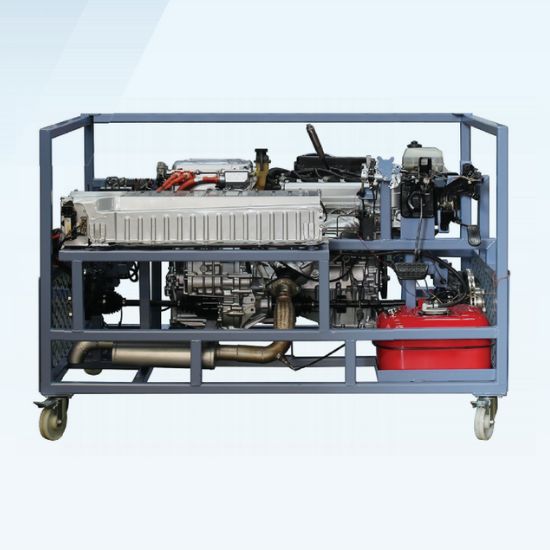

0701-105 Hybrid engine training system

Studying the operation of the hybrid engine system.

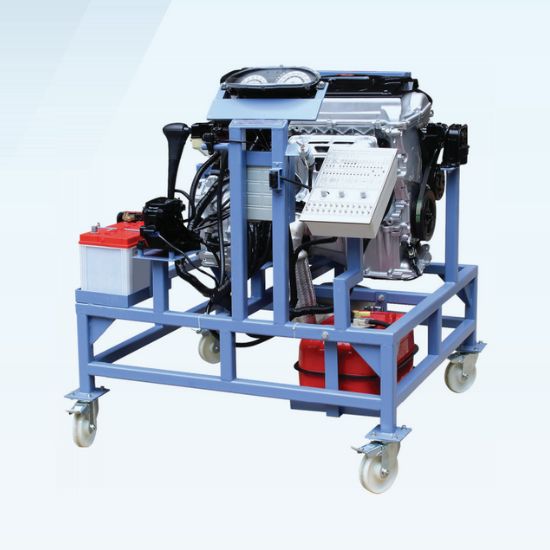

06010 VVT-i gasoline engine training system

Studying the operation of a VVT-i engine with A/T Trasmissionwhich which can be run like a normal engine condition. With test point & test switch engine control / Fault simulator panel

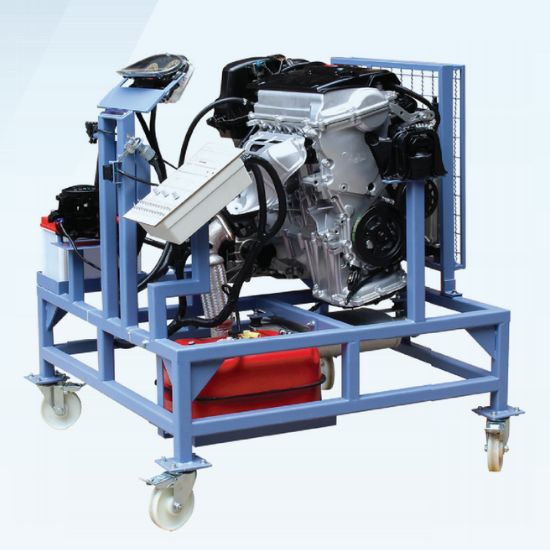

06020 VTEC gasoline engine training system

Studying the operation of VTEC engine with A/T Trasmissionwhich can be run like a normal engine condition. With test point & test switch engine control / Fault simulator panel

Automotive Cutaway (Some examples of our Automotive Cutaway training kits)

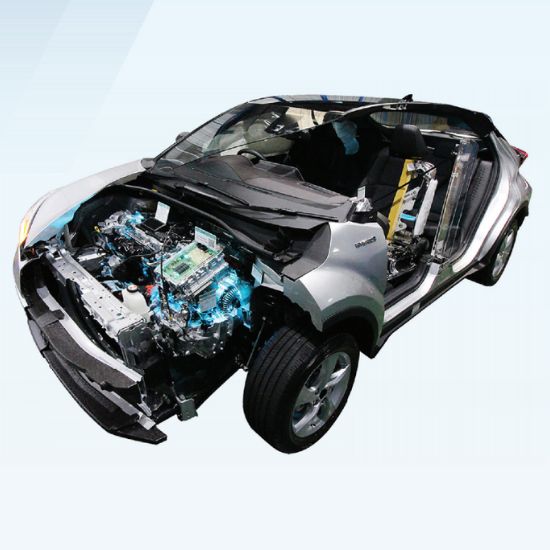

0712-073 Hybrid vehicle full system cutaway training

The training system is designed for studying the operation mechanism of internal parts

 of the hybrid car and the operation system using the the two-system engine to operate

 together with an electrical motor system and have a set of the operating condition

 show lamp of a car.

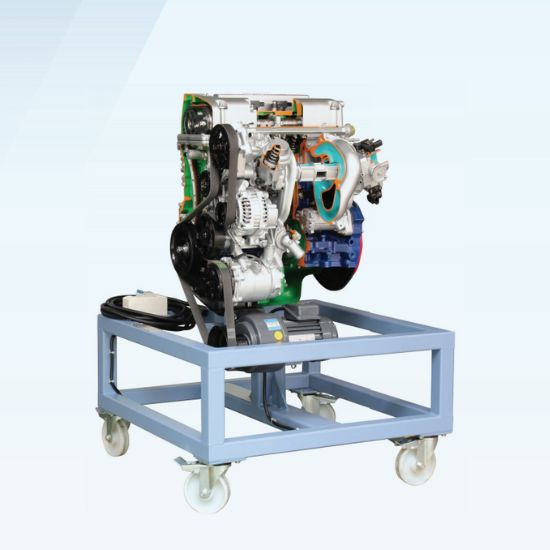

0712-977 Cutaway 4 cylinder gasoline engine

The training system is designed the 4 cylinder gasoline engine. Cutaway the engine for see clearly operating of engine. Used actual components in this training systems.

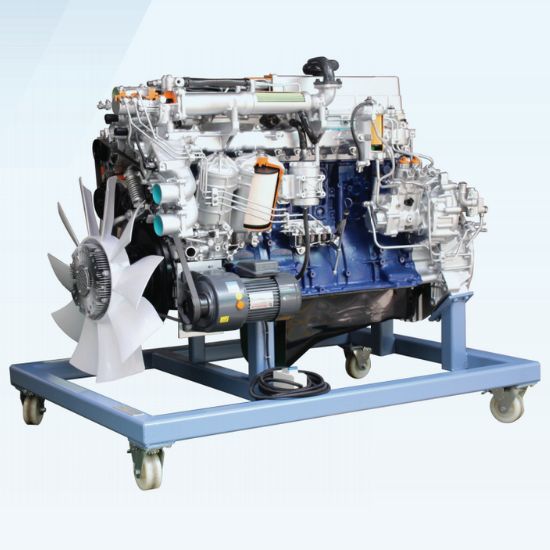

0712-978 Cutaway 6 cylinder turbo 2000 diesel engine

The training system is designed for learning the 6 cylinder diesel engine. Cutaway the engine for see clearly operating of engine. Used actual components in this training systems

Bearing Cutaway (Some examples of our Bearing Cutaway training kits)

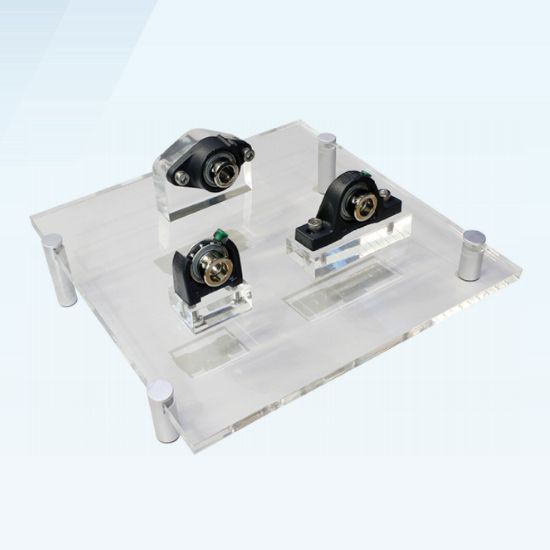

Plummer block bearing housing cutaway

Suitable for : Technical and community colleges.

Description : Study for cutaway plummer block bearing units

Consist of : Cutaway 3 size plummer block bearing / clear acrylic plate : 15 mm

Dimension (WxHxD) : 425x250x400 mm

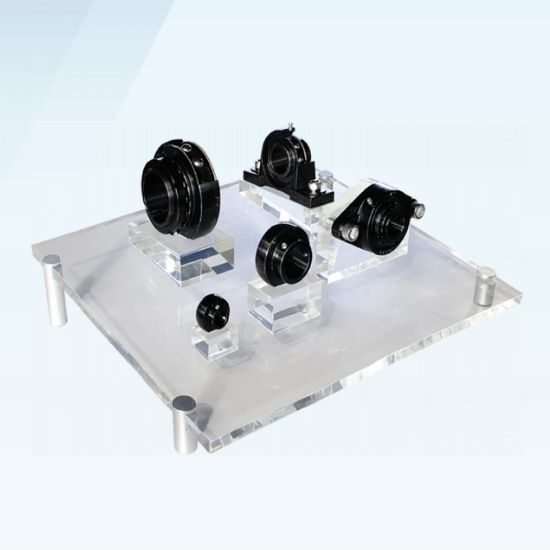

Bearinge units (UC Black) cutaway

Suitable for : Technical and community colleges.

Description : Study for bearinge units (UC Black) cutaway

Consist of : Cutaway 5 size bearinge units (UC Black) / clear acrylic plate : 20 mm

Dimension (WxHxD) : 600x300x500 mm

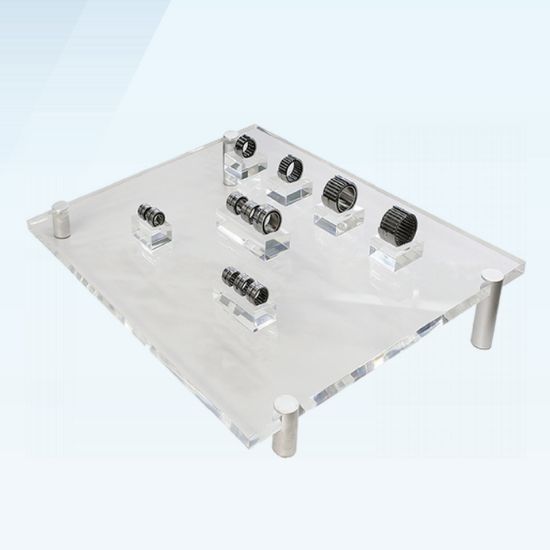

Needle bearing cutaway

Suitable for : Technical and community colleges.

Description : Study for needle roller bearing units cutaway

Consist of : Cutaway 12 size needle roller bearing / clear acrylic plate : 20 mm

Dimension (WxHxD) : 600x250x500 mm

Renewable Energies (Some examples of our Renewable Energies training kits)

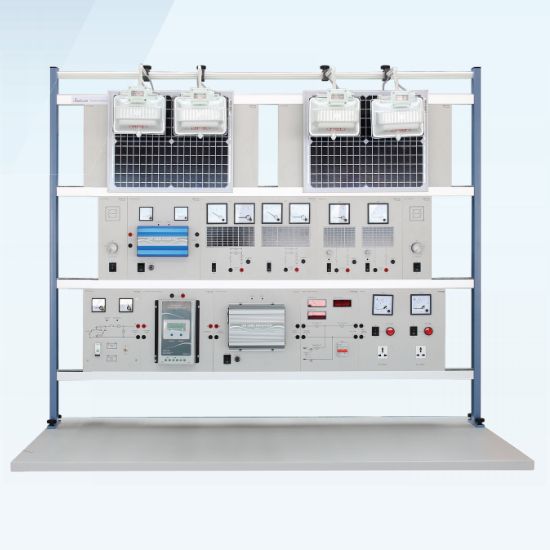

0145-000 PV Photovoltaic Training System

This training system simulate demo solar generate electricity process, enable students to learn solar generate electricity. The training system will cover many topics in solar energy such as the fundamentals of solar PV energy, advantages and disadvantages of a solar PV system, Grid-Tie vs. Off-Gris PV systems.

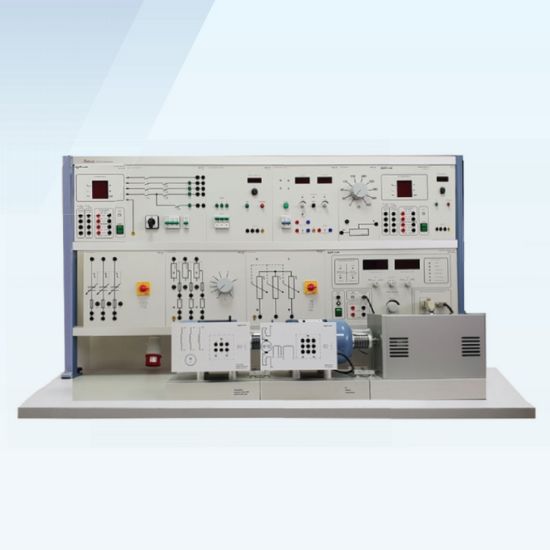

0800-450 DC Power Generation Training System

The training system is designed for practicing to analyzing the DC generator (DC series-wound generator, DC shunt-wound generator, DC compound-wound generator) Used actual components in this training systems. And connect to PC for monitor the speed-torque characteristic.

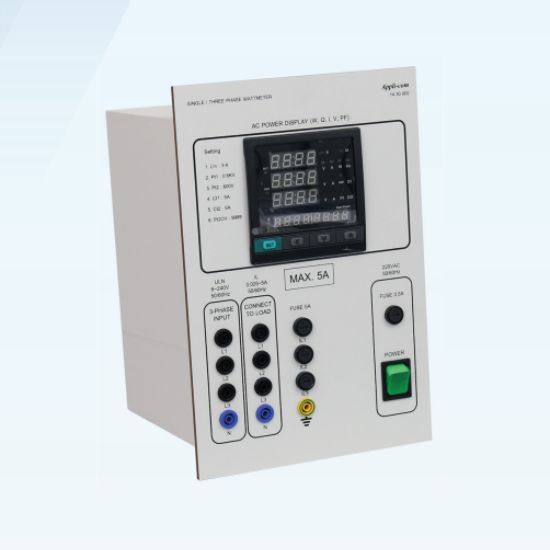

0143-0000 Single / Three Phase Wattmeter

The panels is designed for measuring the W, Q, I, V, PF of the three-phase power system. It use in the electrical machine training system.

Refrigeration & Air Condition (Some examples of our Renewable Energies training kits)

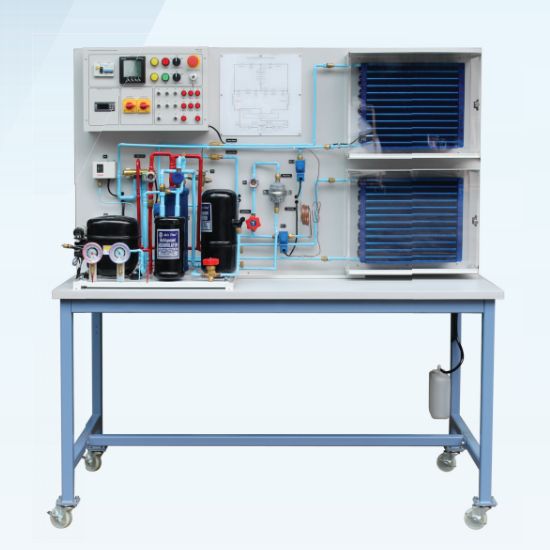

0906-000 Industrial reversing refrigeration training system

The training system is designed to develop students’ skills in evacuating, charging, and revers cycle of refrigeration or heat pump. Mounted on a mobile stand. Refrigerant R-32

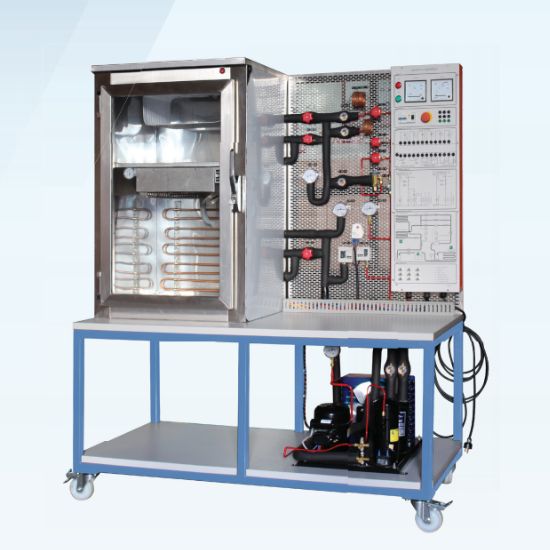

0539-013 Refrigeration training system

Studying electrical and mechanical control circuits, containing a refrigerant, testing a refrigerant level and checking various components. Refrigerant R-32

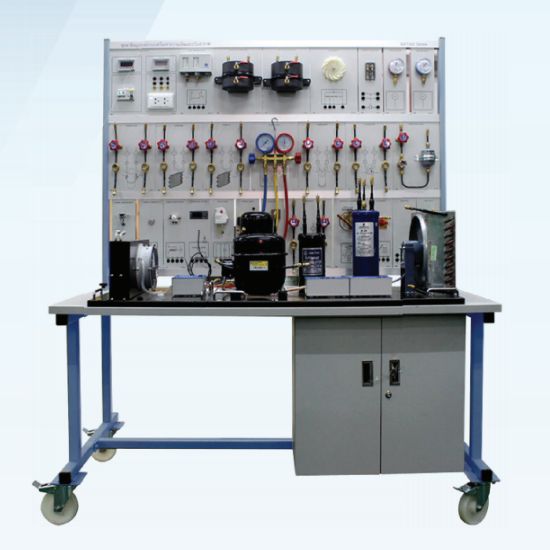

0539-018 Refrigerant Containment System

Practicing to connect electrical and mechanical control circuits, containing a refrigerant and checking various components. Refrigerant R-32

Training Lab Furniture (Some examples of our Training Lab Furniture training kits)

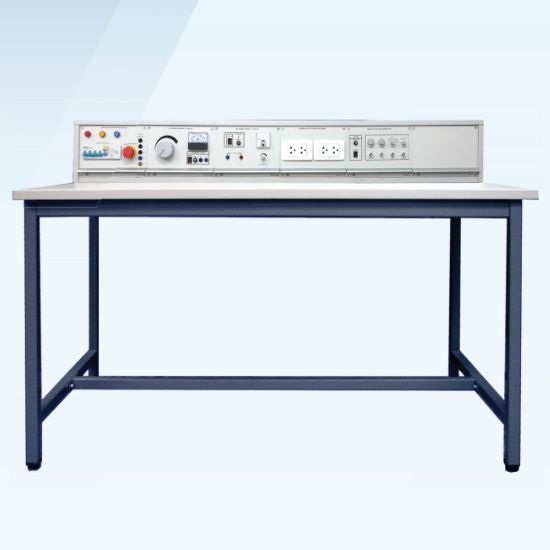

0603-034 Experiment tables and power supply

The table is designed for training lab furniture. Install the power supply for all training systems.

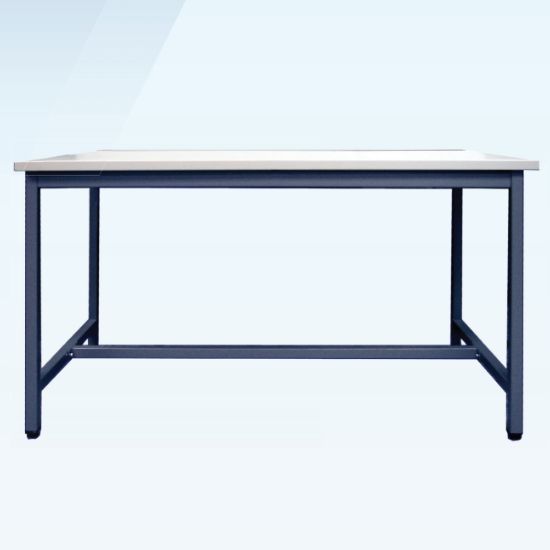

0802-017 Experiment tables

The training system is designed for lab furniture.

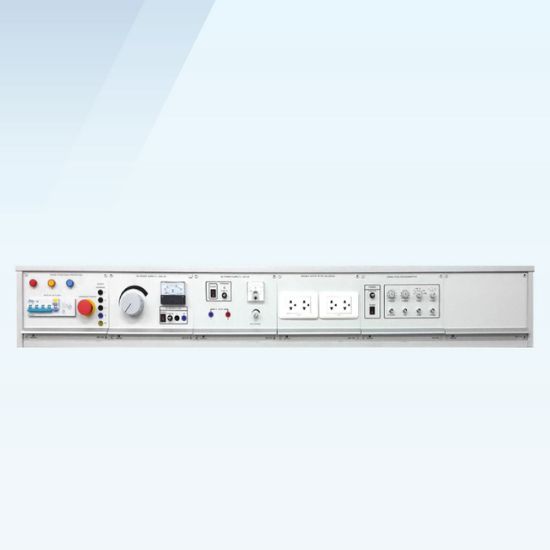

0603-013 Experiment power supply

The training system is designed for lab furniture. The power supply for all training systems.
